Stage 1 | surgery day design

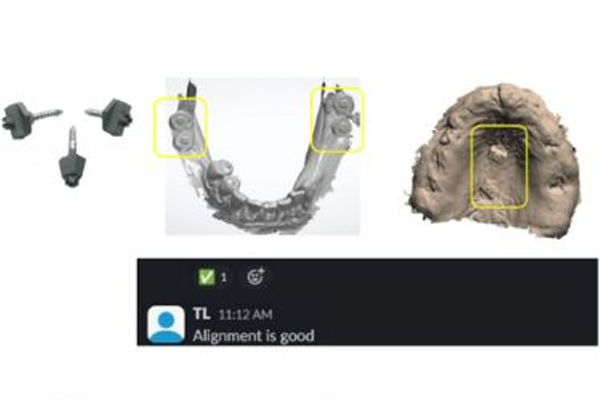

Pre-op IOS scans with fiducial markers

  • Considering using existing dentition which will not inteerfere with surgery

Export STLs to Slack for alignment confirmation

Proceed with surgery. After implant placement select appropriate abutment

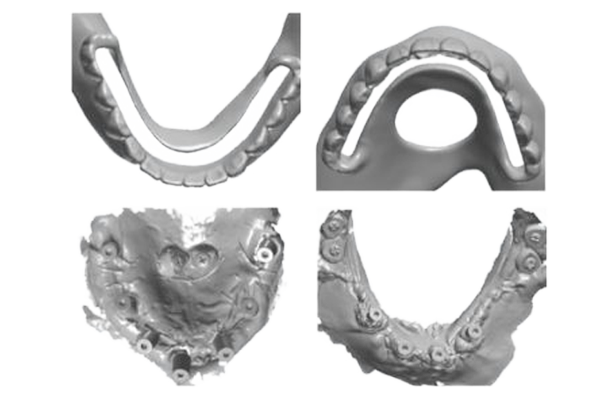

  • Consider using window denture to control screw access

Capture implant / MUA positions for photogrammetry or OptiSplint and export STLs to slack

Post-op scan with IOS

  • Upper Arch (Full Palete)

  • Lower Arch (w/ Retromolar Space)

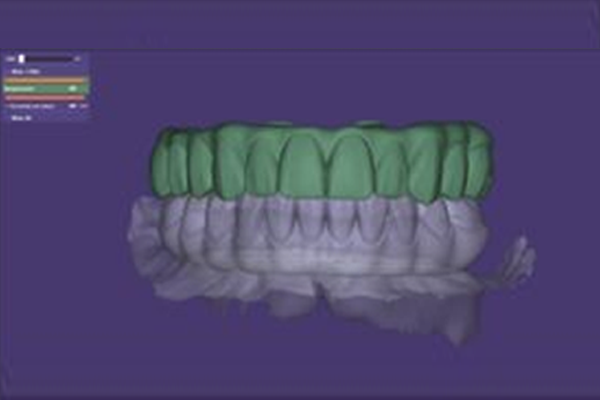

Receive Digital PMMA in Slack

  • Single Arch Design 30 min

  • Double Arch Design 45 min

Download Protocol Here
